Automated Guided Vehicle Systems (AGV)

AGV systems on the advance

Automated guided vehicle systems ( AGVi / AGVii / AGVi heavy duty)

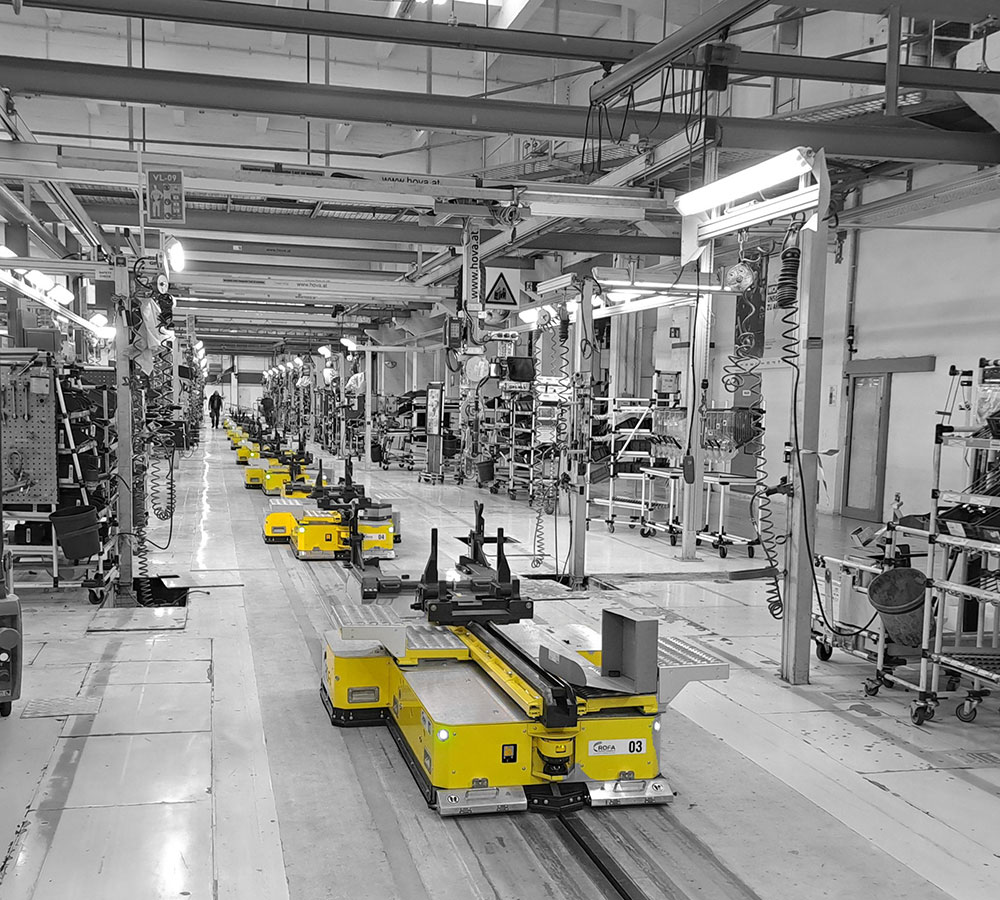

More and more often, ROFA is using automated guided vehicle systems for the automatic floor transportation in the inner material flow and in the production connection.

Automated guided vehicle systems (AGV) from ROFA essentially have the properties of a driverless transport system, but the self-sufficient vehicles are powered by an inductive system rather than a battery. The vehicles can be adapted with a wide variety of add-on functions. Automatic guided vehicles work with mechanical and inductive steering systems and are powered by induction through a rail block installed in the floor. The rail block basically consists of a guide channel and a primary conductor loop for contactless power transmission.

The characteristics of these systems are the low purchase and operation costs while using state-of-the-art technology.

  • Choice of drive concept between conductor line, induction, or battery
  • Choice of steering between mechanical tracking, non-contact induction, laser, wireless, or optical systems
  • Wide range of loads
  • Individual programming
  • Extensive combination possibilities with other conveying systems
  • Flexible routing

AGV series characteristics

AGVi
Load: up 3.000 kg
Speed: up to 60 m/min
Tracking and power transmission: induction

AGVii
Load: up to 8.000 kg
Speed: up to 60 m/min
Tracking and power transmission: induction

AGVi heavy duty
Load: up to 20.000 kg
Speed: up to 25 m/min
Power transmission: induction

WE ARE HAPPY TO HELP!

Our sales department will inform you in detail about the perfect solution for your needs.
