End of line technology

Brakes/vabration/engine test

Our end of line technology offers the ability to perform efficient function testing and control unit parametrization in the shortest time possible.

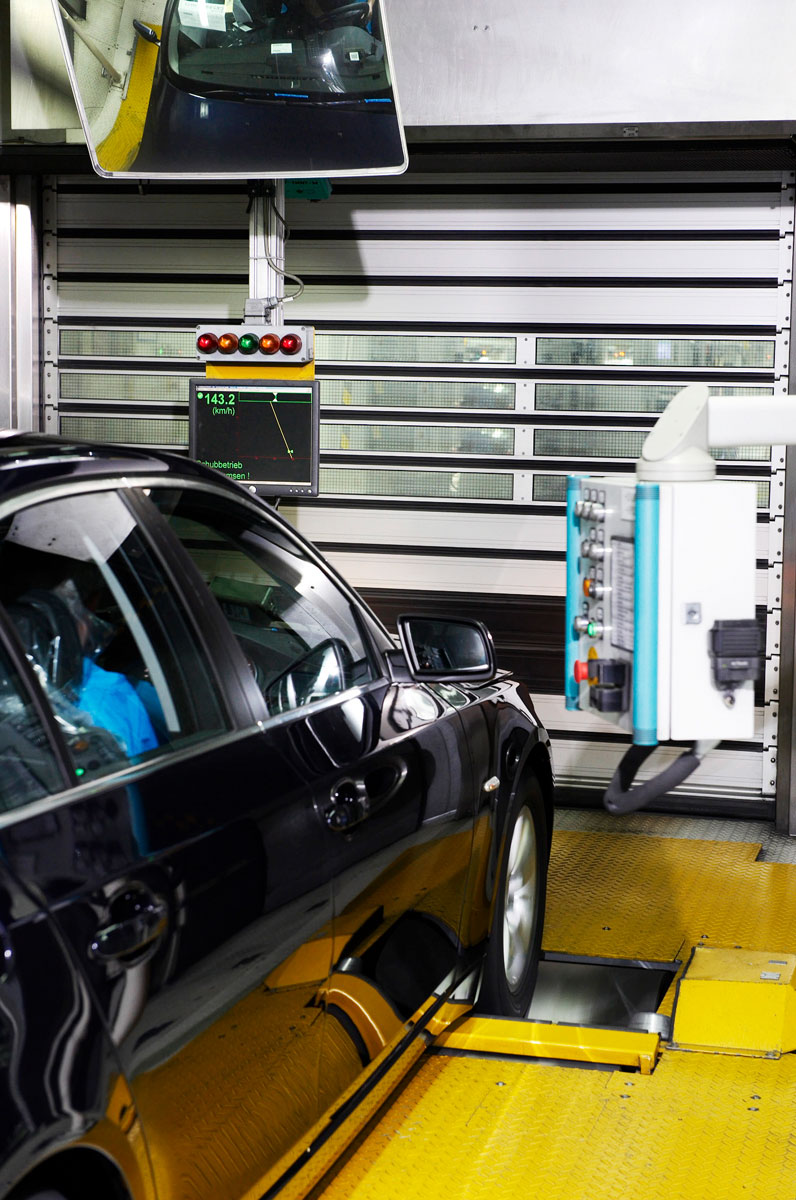

Driving dynamics / roller test bench

Driving dynamics / roller test bench characteristics:

  • Test speed up to 200 km/h
  • Center distance adjustment to 2,000 mm by means of roller carpet
  • Axle load up to 3,000 kg
  • Dynamic and static ABS test
  • Sensor swap tests
  • Electronically simulated vehicle masses
  • 4-motor technology
  • Energy recovery unit

ABS roller test bench

ABS roller test bench characteristics:

  • Test speed up to 10 km/h
  • Axle load up to 2,000 kg
  • Brake force per axle at 5 km/h up to 6,000N
  • 4 powered pairs of rollers with slip rollers
  • 4 brake force measuring units
  • Calibrating ability with calibrated equipment
  • Electric-powered lift bars

Vabration roller test bench

Vabration roller test bench characteristics:

  • Test speed of 50 km/h
  • Crown roller test bench with holding rollers
  • Taking off on different surfaces
  • Individual paved surface on rollers with angular offset implemented on individual rollers
  • 4-motor technology, can be powered through vehicle or through test bench

WE ARE HAPPY TO HELP!

Our sales department will inform you in detail about the perfect solution for your needs.
